Battery Energy Storage System (BESS)
Battery Energy Storage System (BESS)
Technical Specifications
Battery Chemistry: LiFePO₄
Rated Voltage: 512 V DC
Rated Capacity: 800 Ah
Cycle Life: ≥ 5,000 cycles (80 % DoD)
Operating Temperature: Charge 0 °C to +50 °C; Discharge -20 °C to +60 °C
Enclosure Dimensions: 6096 × 2438 × 2621 mm
Approx. Weight: 8,500 kg
Output: 415 V AC 3-phase LT panel
Protection & Fire System: Multi-layer fire suppression, HVAC, BMS monitoring of cell-level parameters
Scalability: Modular containerised rack enables larger system build-out
Product Details

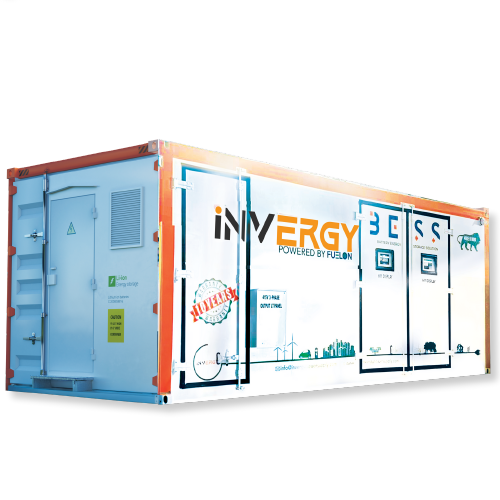

The Invergy BESS is a high-capacity energy storage solution designed for commercial, industrial and utility-scale deployments. Leveraging advanced LiFePO₄ battery technology and an intelligent EMS (Energy Management System), it enables effective solar-plus-storage, grid-support, peak-shaving and reliable backup power. Built for demanding environments, the system delivers long life, high safety and modular scalability.
Key Features
Rated system capacity of 384 kWh (512 V / 800 Ah) in its standard configuration — ideal for large loads and energy shifting.
LiFePO₄ chemistry offers long cycle life (≈ 5,000 cycles at 80 % depth of discharge) and excellent thermal stability.
Integrated EMS for intelligent charge/discharge control, system monitoring, state-of-health tracking and performance optimisation.
Comprehensive protection systems including over-charge & over-discharge protection, short-circuit protection, fire-suppression system, HVAC, CCTV and LED lighting within enclosure.
Rugged, industrial-grade design: mild steel sheet-metal enclosure, large format container (6096 × 2438 × 2621 mm), weight approx. 8,500 kg, output 415 V 3-phase LT panel.
Modular and scalable architecture: multiple systems can be paralleled to meet higher energy demands or future expansions.
Built for Indian/install-site conditions: wide operating temperature range (-20 °C to +60 °C discharge; 0 °C to +50 °C charge), high durability, robust installation footprint.
Benefits & Applications
Cost optimisation & energy shifting: Store solar generation or off-peak grid energy; discharge during peak demand hours to reduce electricity bills and improve ROI.
Reliable backup & continuity: For facilities with high availability demands (manufacturing plants, data-centres, hospitals) the Invergy BESS provides dependable reserve capacity.
Solar integration: Use in conjunction with PV systems to maximise self-consumption, export control and grid-tie flexibility.
Scalable future-proof solution: As energy needs grow or tariffs change, additional modules can be added to the system.
Industrial and utility-scale readiness: Suitable for commercial rooftops, industrial loads, micro-grids, hybrid systems and utility-scale installations requiring robust energy storage.
